Mechanical(Carbon, Sand)Filter Housing

Model: JTGMF

Brand: JHENTEN

Filter With Pressure

Detail Description

JTGMF Mechanical(Carbon, Sand)Filter Housing is an important part for Pure water preparation early pre-Finish andwater purification system. It is apply to drinking water standard industrial water which is required filtered and general turbidity of treated water is within 5mg/L. It has good remove effect for suspended solids in industrial sewage. The Tablet agglomerated from suspended solids in water which can not remove through Precipitation method, we can through water to filter layer in filter vessel. Finally, to achieve transparency in water.

JTGMF Mechanical(Carbon, Sand)Filter Housing using multichannel polishing processing to ensure the interface surface roughness Ra≤0.4um,compliance with GMP/FDA requirement . All of the surface is mirror polished.

Feature

Barrel's internal and external surface using mirror polish, interface Ra reach to 0.4um close to sanitary level.
The equipment low cost, low Operating cost and easy management.
Reasonable structure design, after Filter material backwashing can use many times, filter material has long service life, effective filtering and small occupation area.

Application

It is used in water Finish, mainly used in turbidity removal, reverse osmosis and The front-end preprocessing of Ion exchange softening desalination system. It also can be used in remove sediment in Surface water and groundwater. The requirement of influent water turbidity should less than 20 degrees, and the turbidity of treated water can below 3 degrees.
Can be widely used in Electronic power, oil chemical industry, metallurgy, electroplating, papermaking, textile, pharmaceutical dialysis, food and beverage, drinking water, Factories in water, swimming pool, etc. To meet the needs of the various industries liquid filtration.

Surface Finish

Finish Type	Mechanical polishing, electrolyticpolishing, sand blasting, pickling
Polishing Precision	Inner surface Ra≤0.4μm , Outside surface Ra≤0.6μm.

Operating Conditions

Max Operating Pressure	0.4MPa, 0.6MPa
Max Operating Temp.	120℃
The filter shell adopts：ATM(pressure testwith full water)

Material

Filter shell	304, 316L
Stabilizer blade, sling	304
Connect pipe	304
O-ring	EPDM, PTFE, Viton, Silicone

Connection

In-outlet N1, N2	1”/2”Flange, Tri-clamp, Thread
Pressure gauge connectionN3, N4	1.5”Screw thread
Vent valve connection N5	1/4”Screw thread
Sight glass connection N6	Flange
Manhole N7	Flange
Packing Hand hole N8	Flange

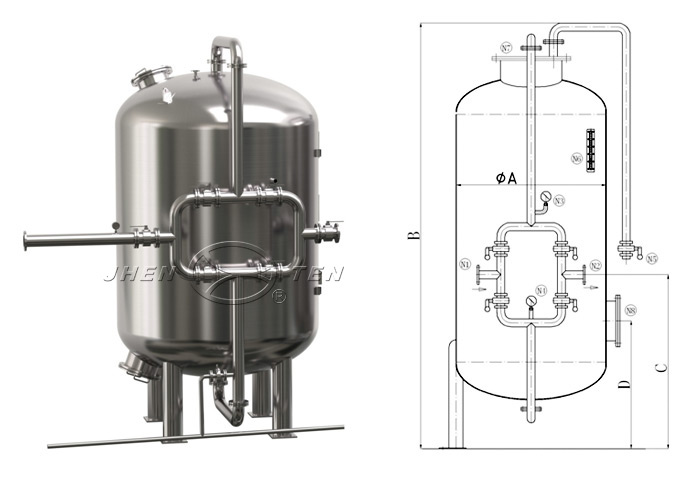

Dimension Parameters	A:Shell diameter
	Φ600	Φ800	Φ1000	Φ1200
B:Total height	2350		2600
C:Height from In-outlet to ground	1500
D:Height from packing hand hole to ground	1200
Equipment output, T/h	1.4～2.8	2.5～5.0	4.0～8.0	5.5～11

A:Shell diameter
Φ1400	Φ1600	Φ1800	Φ2000
2800
1800
1200
7.5.4～15	10～20	13～25	16～30

A:Shell diameter
Φ2500	Φ3000	Φ3200
3000
2000
1200
25～49	35～70	40～80

The above-mentioned data is the standard, it can customize according tocustomer's requirements.

Selection Table

	［Shell diameter］				［Shell material］	［In-outlet connection］	［O-ring］
JTGMF	600J				4	K	S
	600J=diameterΦ600 mechanical filtration				4=304	F=Flange	E=EPDM
	800J	1000J	1200J	1400J	6=316L	K=Tri-clamp	P=PTFE
	1600J	1800J	2000J	2500J		L=Screwthread	V=Viton
	3000J	3200J					S=Silicone
