Tube Filtration

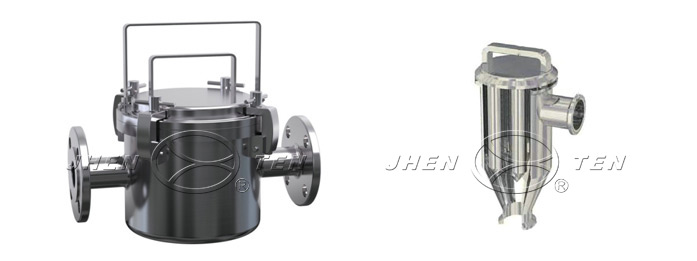

Magnetic Fluid Filter Housing
Model: JTGCX
Brand: JHENTEN
Fluid Pipe De-Ironing Separator
Detail Description
JTGCX Magnetic Fluid Filter Housing is applied to the fluid, semifluid and other different viscous fluid materials, remove the iron impurities and other ferromagnetic particles. To keep the material clean and protect the downstream production equipment at the same time.
JTGCX Magnetic Fluid Filter Housing using multichannel polishing processing to ensure the interface surface roughness Ra≤0.4um,compliance with GMP/FDA requirement . All of the surface is mirror polished.
Feature
Barrel's internal and external surface using mirror polish, interface surface roughness Ra≤0.4um,compliance with GMP/FDA requirement .
Using Flange, quick-open, eyebolt plate or quick release clamp can easy to install, take out and clean magnetic component.
Reasonable structure design can ensure the best de-ferrous effect at the same time not impede the flow of the material.
Application
Used in food and beverage, metal processing, pharmaceutical, ceramics, paper, cosmetics, fine chemical industry, etc. To protect main equipment from the destruction of the iron particles
Surface Finish
Finish Type | Mechanical polishing, electrolyticpolishing, sand blasting, pickling |
Polishing precision |
Inner surface Ra≤0.6μm , |
Operating Conditions
Max Operating Pressure | 0.6MPa, 1.0MPa |
Max Operating Temp. | 150℃ |
Material
Filter shell | 304, 316L |
O-ring | EPDM, PTFE, Viton, Silicone |
Connection
Shell connection |
Tri-clamp(0.6MPa), |
In-outlet N1, N2 | Flange, Tri-clamp, Thread |
Structure

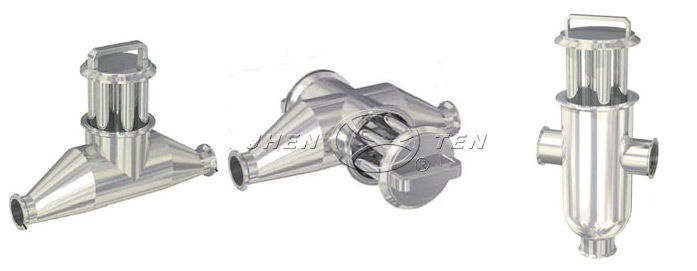

JTGCX A series JTGCX B series
JTGCX C series JTGCX D series JTGCX E series
Dimension Parameters
Diameter | Qty.of magnet | In-outlet | Magneticbar | |
Diameter | Length | |||
Φ50 | 1 | 1”/1.5” | Φ20 | 6”/8”/10” |
Φ114 | 4, 5 | 1”/1.5”/2”/2.5” | ||
Φ159 | 6, 7 | 1.5”/2”/2.5”/3” | ||
Φ190 | 9 | 2”/2.5”/3”/4” | ||
The diameter of In-outlet under 3” using quick-open, 3” and 4” usingflange. it can customize according to customer's requirements. Dimension anapproximate value, for reference only.
Selection Table
［Series number］ | ［No. of magnet］ | ［Magnet model］ | ［Shell material］ | ［In-outlet Connections］ | ［O-ring］ | |
JTGCX | A | 9R | 26 | 4 | F | S |
A=Aseries | 1R=1pc |
206, 208, 210 | 4=304 | F=flange | E=EPDM | |
B=Bseries | 4R=4pcs/5pcs | 6=316L | K=quick-installed | P=PTFE | ||
C=Cseries | 7R=6pcs/7pcs | L=screwthread | V=Viton | |||
D=Dseries | 9R=9pcs | S=Silicone | ||||
E=Eseries |
